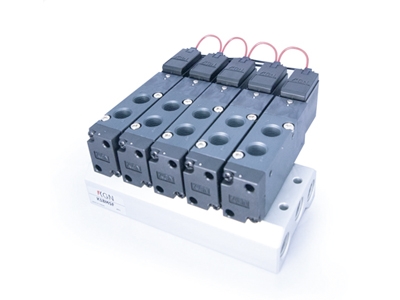

K03 Series Solenoid Valves

K03 Series Solenoid Valves

Download
K03 SOLENOID VALVES
 Main Unit Type                                                       Type
 K03      -32C1  Single solenoid 3-port/2-position
 K03 -52C1  Single solenoid 5-port/2-position

Specifications
  Item               \              Main Unit Type     K03-32 K03V-32 K03-52
  Media Air  Vacuum Air
  Operation type     Direct operated      Pilot operated
  Port size M5x0.8
  Operating pressure range  0~0.7 MPa   (-100~0 kPa)   0.15~0.7 MPa
  Proof pressure                                 1.05MPa -- 1.05MPa
  Consumption Current                         1.6W
  Response time                                 ON  :10ms or below
 OFF:25ms or below
  Effective sectional area S (Cv)           1(P)→2(A)  0.60mm2(0.03)
  Maximum operating frequency             5Hz
  Operating temperature range                5~50oC (no freezing)
  Maximum operating cylinder size ~Ø20 -- ~Ø20
