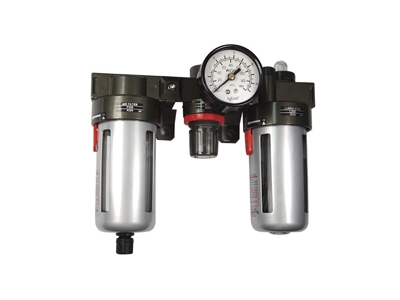

F.R.L.Combination

F.R.L.Combination

Download
F.R.L. Combination   Specification
 Item                     \            Main Unit Type  C 158-01(02)   C 308-02(03)   C 608-04(06)
 Fluid Air
 Tubing connection                                Rc 1/8 (1/4) 1/4 (3/8) 1/2 (3/4)
 Filter grade                                         µm 5
 Pressure range                     kgf/cm2(kPa) 0.5~8.5(50~850)
 Max.service pressure            kgf/cm2(kPa) 9.5 (950)
 Range of service temperature               oC 5~60 (no freezing)
 Drain holding capacity of air filter           cc 15 60 100
 Lubricator capacity                               cc 25 90 160
 Recommended lubricants Turbine oil class 1(Standard ISO-VG32)or equivalent.
 Wight                                                    kg 0.7 1.3 1.5
 Material  Main unit Aluminum diecast
 Bowl Polycarbonate
 Equipment  Filter F 158-01(02) F 308-02(03) F 608-04(06)
 Regulator R 158-01(02) R 308-02(03) R 608-04(06)
 Lubricator L 158-01(02) L 308-02(03) L 608-04(06)
