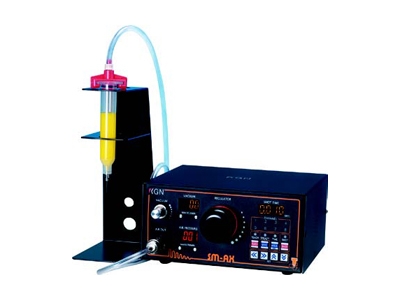

SM-AX Precision Digital dispenser
Specifications
*1.Order made.
*2.If use external connection and input voltage,it show caution signal and stop.
Specifications
| Control method | Electronic/Pneumatic system | |
| Power supply | DC24V(Fixture AC100~240V power adapter) | |
| Power consumption | Max.17W | |
| Air source | Max. 0.99MPa | |
| Dispensing pressure | 0.01~0.70MPa | |
| Dispensing duration range | 0.010~9.999sec. 8 Channel memory | |
| Operating mode | Time mode (metered shot ) Steady mode (continuous shot) | |
| Display section | LED Digital display of air pressure & vacuum | |
| Control signal Port (Foot switch port) |
Shot (input)signal | When select non-voltage contact mode: *2 Capacity over 20mA of N.O. contact When select input voltage mode:DC5~24V |
| Shot end signal | Non-Voltage N.O. contact: Load capacity AC250V, 3A / DC30V, 3A |
|
| I/O Connect port | Star / Stop (Input) | Input voltage DC10~30V, ON current:more than 3.5mA, OFF current:lower than 1mA. |
| Mode / Shotting (Output) | Non-Voltage contact:DC30V, 20mA | |
| Vacuum function | Built-in vacuum transducer | |
| Operating temperature | +5oC ~ +40oC | |
| External dimensions | (W)184x(D)159x(H)88 mm | |
| Weight | 1.6kg | |
*1.Order made.
*2.If use external connection and input voltage,it show caution signal and stop.
