UX Series

UX Series

Download

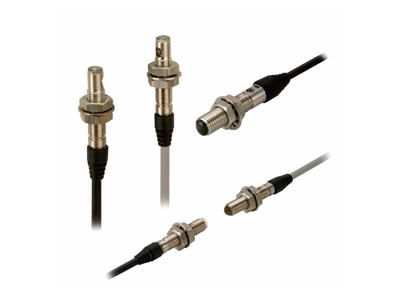

Amplifier embedded in M5 or M6 threaded screw
*Simple installation reduces man-hours.
*Replacing fiber sensors contributes to lower power consumption
*Can be used in the battery industry thanks to its stainless steel housing
*Our line includes both straight and side view through-beam types
*Diffuse reflective type is equipped with sensitivity volume (Model:UX-R5V, UX-R5VPN)
Type
  Detection method
 Detecting distance  Model  Operation
mode
 Output
   mode
 NPN Output   PNP Output
 Through beam 1m  UX-T100D   UX-T100DPN  Dark-On  Open collector
output
500mm UX-T50DS UX-T50DSPN
 Diffuse reflective  3~20mm UX-R2 UX-R2PN Light-On
3~30mm UX-R3 UX-R3PN
3~50mm UX-R5 UX-R5PN
3~50mm UX-R5V UX-R5VPN
