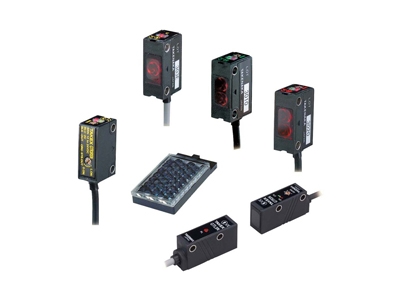

Ultra-compact size used for built-in use for over 25 years
Various types such as head-on, wide diffuse reflective, high power or convergent reflective
M3 threaded screw can be used for all models
Water resistance complying with IP67
Stability output is included standard
*High-power light transmitting business cards : GT1SN, GT1N
*Long detecting distance of 10m : GT3RSN
*High-performance detection at a short distance : GS5SN, GS5N
*Less affected by background : limited reflection type
*Easy light axis alignment : red LED type
Various types such as head-on, wide diffuse reflective, high power or convergent reflective
M3 threaded screw can be used for all models
Water resistance complying with IP67
Stability output is included standard
*High-power light transmitting business cards : GT1SN, GT1N
*Long detecting distance of 10m : GT3RSN
*High-performance detection at a short distance : GS5SN, GS5N
*Less affected by background : limited reflection type
*Easy light axis alignment : red LED type
Type
Detection method
|
Detecting distance |
Model | Operation mode | Output mode |
||||||
Side-on type | Head-on type | |||||||||
Through beam | 1m | GT1SN | -- | NPN Open collector output | Light-ON/Dark-ON
selectable
(with switch)
|
|||||
GT1SPN | -- | PNP Open collector output | ||||||||
-- | GT1N | NPN Open collector output | ||||||||
-- | GT1PN | PNP Open collector output | ||||||||
7m | -- | GT3N | NPN Open collector output | |||||||
-- | GT3PN | PNP Open collector output | ||||||||
10m | GT3RSN | -- | NPN Open collector output | |||||||
GT3RSPN | -- | PNP Open collector output | ||||||||
7m | GT7SN | -- | NPN Open collector output | |||||||
GT7SPN | -- | PNP Open collector output | ||||||||
Retroreflective | 0.1~2m | GSM2RSN | -- | NPN Open collector output | ||||||
GSM2RSPN | -- | PNP Open collector output | ||||||||
Diffuse reflective |
70mm | GS5SN | -- | NPN Open collector output | ||||||
GS5SPN | -- | PNP Open collector output | ||||||||
-- | GS5N | NPN Open collector output | ||||||||
-- | GS5PN | PNP Open collector output | ||||||||
400mm | GS20RSN | -- | NPN Open collector output | |||||||
GS20RSPN | -- | PNP Open collector output | ||||||||
300mm | -- | GS20RN | NPN Open collector output | |||||||
-- | GS20RPN | PNP Open collector output | ||||||||
300mm | GS20SN | -- | NPN Open collector output | |||||||
GS20SPN | -- | PNP Open collector output | ||||||||
200mm | -- | GS20N | NPN Open collector output | |||||||
-- | GS20PN | PNP Open collector output | ||||||||
Convergent reflective | 1~40mm | GSZ3SV | -- | NPN Open collector output | ||||||
GSZ3SPN | -- | PNP Open collector output | ||||||||
3~30mm | GSZ3RSN | -- | NPN Open collector output | |||||||
GSZ3RSPN | -- | PNP Open collector output |
