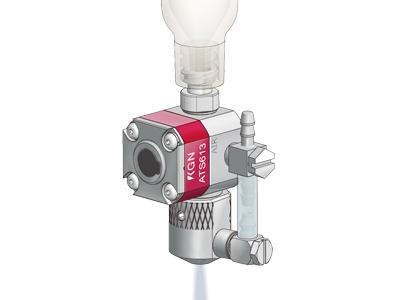

ATV613 Spray Valve provides exceptional control for reliable, consistent coatings of low viscosity fluids. The combination of adjustable fluid flow, adjustable nozzle air to provide superior spray control. Fluid can be reliably dispensed in microliter to milliliter amounts, in round patterns with diameters ranging from 10 mm (1") to 40 mm (6"). This valve is suitable for compact automated e quipments.
ATS613(Air Operated) Spray Valve
Specifications
Spray Area Coverage
Note : The decay time data is measured by in-house test standards.
Fluid material ：Water ; Input fluid pressure ：0.05MPa;Dispensing pressure ：0.34MPa
Specifications
| Valve Mode | ATS613 | ATS613-N |
| Valve strucature | Spray valve | |
| Maximum input fluid pressure | 0.2MPa(2.0kgf/cm2) | |
| Viscosity | ~0.3Pa.s(~300cps) | |
| Wetted parts material | SUS316 | |
| Diaphragm material |
PTFE
|
|
| Material inlet dimension | Thread M5x0.8 | |
| Dosing port dimension | Spray port 0.6mm | |
| Needle Length | -- | 10mm |
| Air inlet port | For Ø2.5x4mm tube | |
| Dispensing pressure | 0.35~0.49MPa(3.6~5.0 kgf/cm2) | |
| Weight (Main unit) | 39.1g | 39.2g |
Spray Area Coverage
| Nozzle distance from surface | |||||
| Distance | 25.4mm(1") | 50.8mm(2") | 76.2mm(3") | 152.4mm(6") | |
| Round | ATS613 | 10mm | 15mm | 20mm | 40mm |
| ATS613-N | 15mm | 20mm | 25mm | 40mm | |
Fluid material ：Water ; Input fluid pressure ：0.05MPa;Dispensing pressure ：0.34MPa
