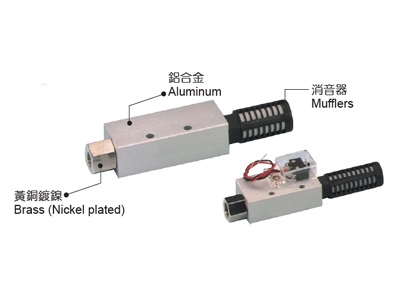

KV Vacuum Ejectors

KV Vacuum Ejectors

Model :KV-05 / KV-10 / KV-15 / KV-20
Download
Compressed air enters the ejector through compressed air supply port P, passes through the nozzle and diffuser at high speed and sucks air out of the vacuum, generating port V, thus creating a vacuum in the sealed chamber to which V is connected.
VACUUM EJECTORS  Specification
  Item         \               Type KV-05 KV-10 KV-15 KV-20
 Fluid Air (non-corrosive gas)
 Temperature range  5~60oC (no freezing)
 Lubrication No possible
 Pressure range 0.1~0.6Mpa [1.0~6kgf/cm2 G]
 Weight
 Standard / C Type / CK Type
 80/100/120 (g)   140/160/190 (g)   350/370/460 (g)
