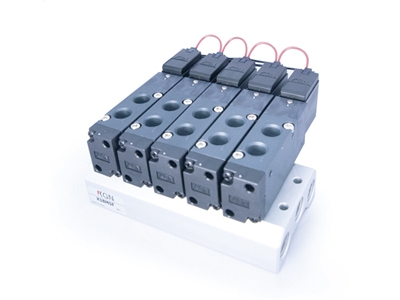

K11 Series Solenoid Valves

K11 Series Solenoid Valves

Download
K11SOLENOID VALVES
 Model  Type
 K11      -32C1  Single solenoid 3-port/2-position
 K11      -52C1  Single solenoid 5-port/2-position
 K11      -52C2  Double solenoid 5-port/2-position
 K11      -53C2  Double solenoid 5-port/3-position

Specifications
  Item        \         Main Unit Type         K11      -32C1     K11      -52C          K11      -53C2
  Media Air
  Operation type Pilot operated
  Port size M5x0.8
  Operating pressure range              MPa  0.15~0.7
  Proof pressure                             MPa 1.05
  Consumption Current                      W 1.6
  Response time                              ms ON15/OFF25
以下or below
ON15/OFF25
以下or below
ON15/OFF30
以下or below
  Effective sectional area S (Cv)       mm2 4.20(0.23) 3.80(0.21)
  Maximum operating frequency         Hz 5
  Operating temperature range           oC  5~50(no freezing)
  Maximum operating speed ~Ø40
