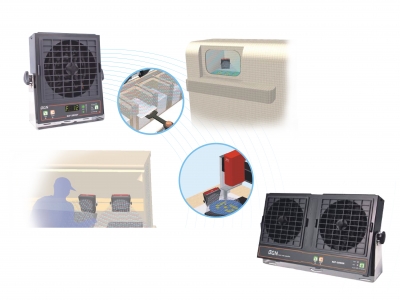

N Series Fan Type

N Series Fan Type

Download
Modularized design for easy maintenance.
Display on top of device frame.
Compact and space saving.

 Type KIF-1000N KIF-2000N KIF-3000N
 Ion generation Conrona discharge
 Voltage at discharging pin High-frequency AC
Static elimination time *1
 (±1000V►±100V)
Approximate 2.5 Approximate 1.5 Approximate 1.0
 lon balancing ±15V ±15V ±15V
 Air volume 22~45CFM
(0.62~1.28 M3/min)
64~150CFM
(1.82~4.26 M3/min)
128~300CFM
(3.64~8.52 M3/min)
 Ozone volume (within 150mm) 0.007ppm以下 0.014ppm
Control for discharging suspension *2    --
 Warning output *  Fan stop YES YES YES
 Discharge error YES YES YES
 The pin cleaning module
 is not properly covered
YES YES YES
 High voltage output Approximate 2KV, 72KHz
 Ambient temperature 0~40oC(indoor)
 Relative humidity 35%~75%,non-condensing
 Power input DC24V ± 5%
 Current consumption 220mA 470mA 750mA
 Dimension     WxHxD  mm 116x142x63 142x173x63 300x173x63
 Weight (Mounting excluded) 469g 675g 1736g
 Warranty(Accessories excluded) 2 Yr
 Accessories   Mounting kit
  I/O Connector(KIF-OC1)
  Ground cable(2M)
  Safety Filter
  Instruction manual

*1.Measured with maximum air speed and at a location centered in the air output and 300mm away from the fan.
*2.When pausing the power input, the warning contact output.
*3.Signaling at output contact, NC/NO panel switch (50mA)
