Standard Type Quick Fittings

Standard Type Quick Fittings

Download
One-touch, speedy connections.

Common use of nylon tubes and polyurethane tubes, sealed thread parts and other features are based on the concept easy use.

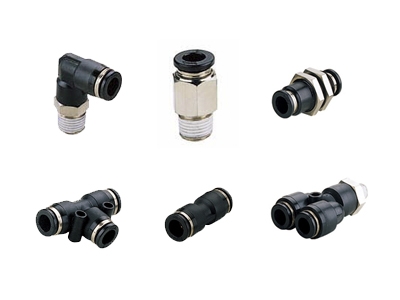

MINI TYPE QUICK FITTINGS
 Fittings Model  Fittings Type
 KTS  Straight
 KTSH   Hex.-Holed Straight
 KTSM  Female Straight
 KUKM  Bulkhead Female Straight
 KTL  Elbow
 KTLL   Long Elbow
 KSL   Universal Elbow
 KTT   Tee
 KTB   Branch Tee
 KTBY  Branch Y
 KUL  Union Elbow
 KUS  Union Straight
 KUT  Union Tee
 KUY   Union Y
 KUSD  Different Diam. Union Straight
 KUYD  Different Diam. Union Y
 KUK  Bulkhead Union

Specifications
 Fluid                                                  Compressed Air, Vacuum
 Pressure (Max.)  1.0MPa { 10.2kgf / cm}
 Negative pressure  -100kPa { -750 mmHg }
 Temperature range  5~60 oC ( no freezing )
 Recommended tube  Nylon tube, Polyurethane tube
